Signature Series / The Haven DVHBSS-4501

Deer Valley Homebuilders

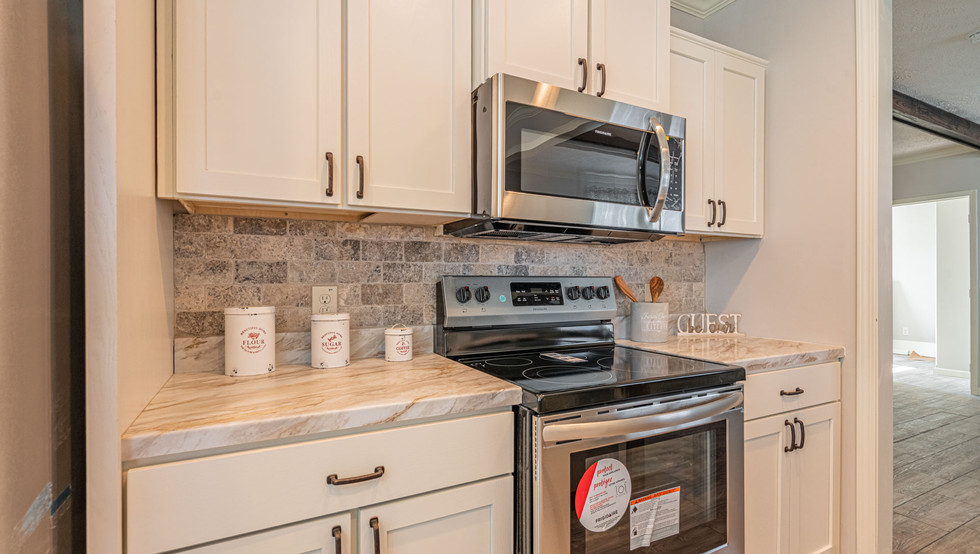

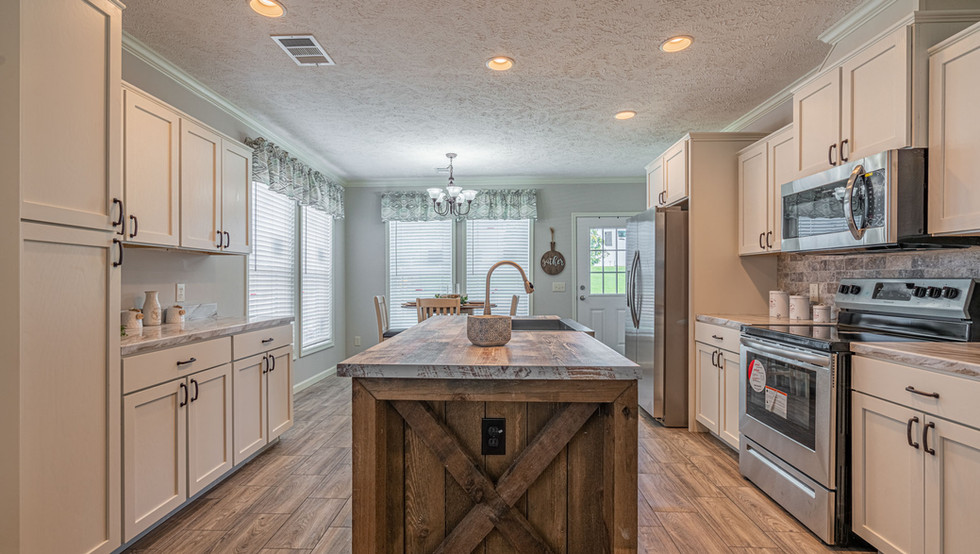

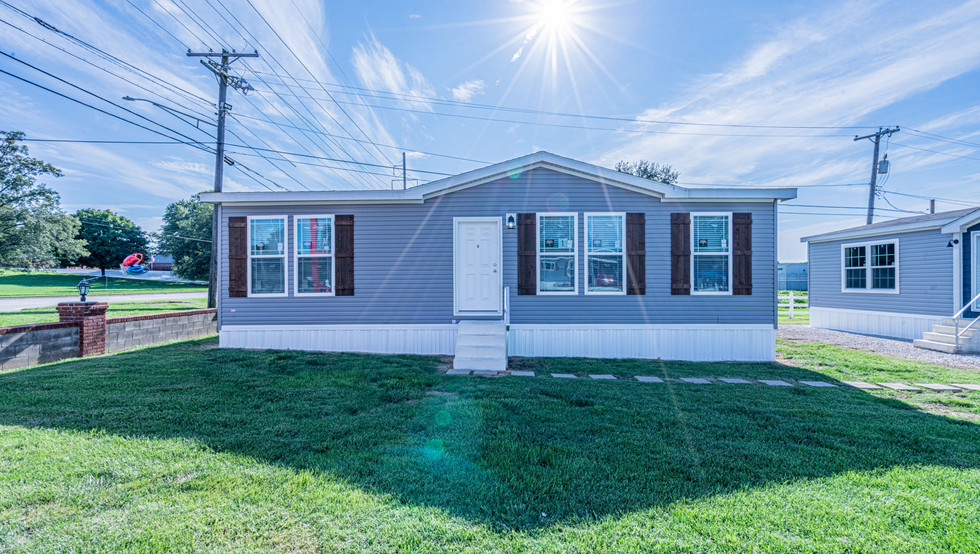

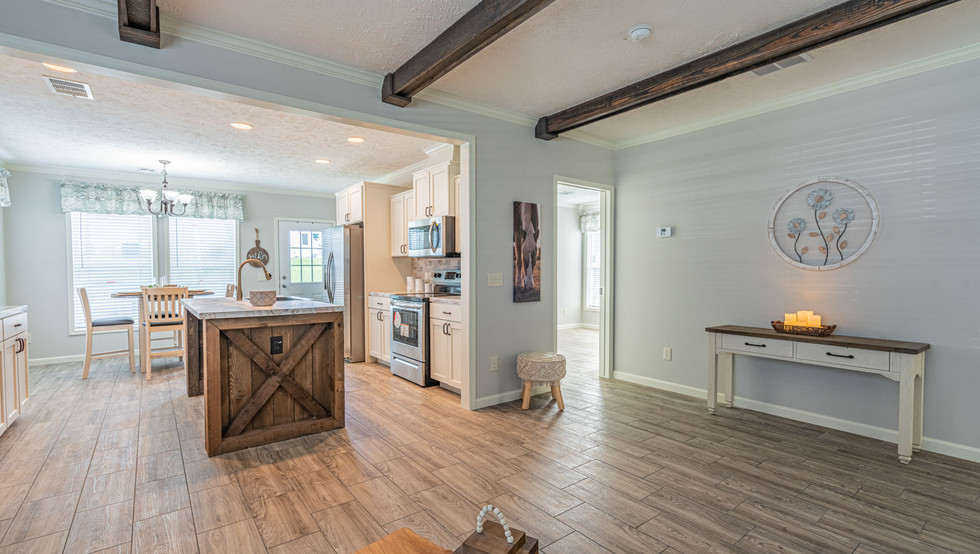

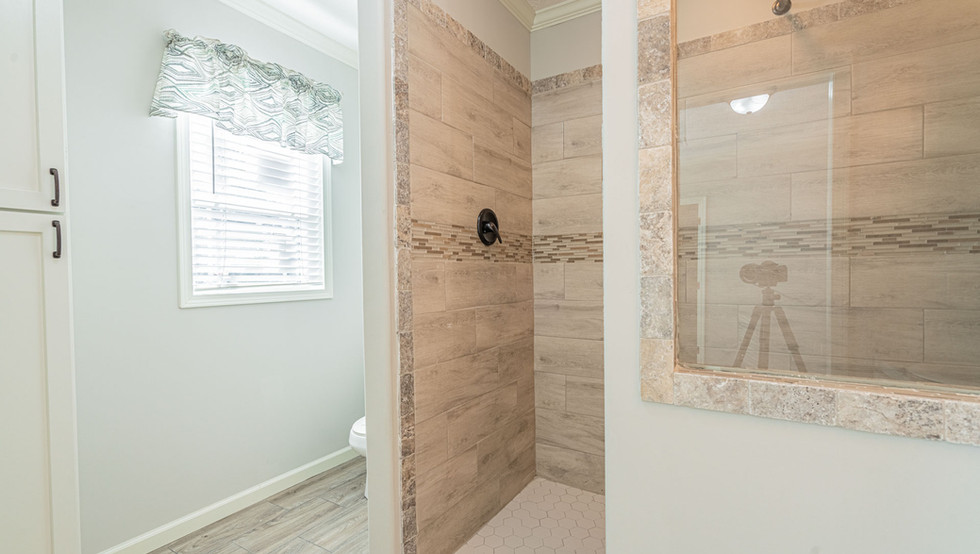

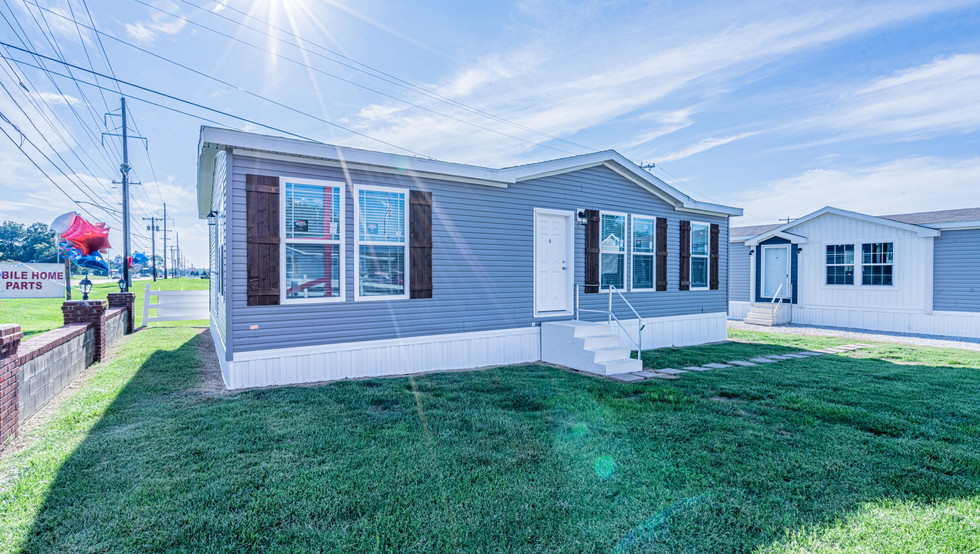

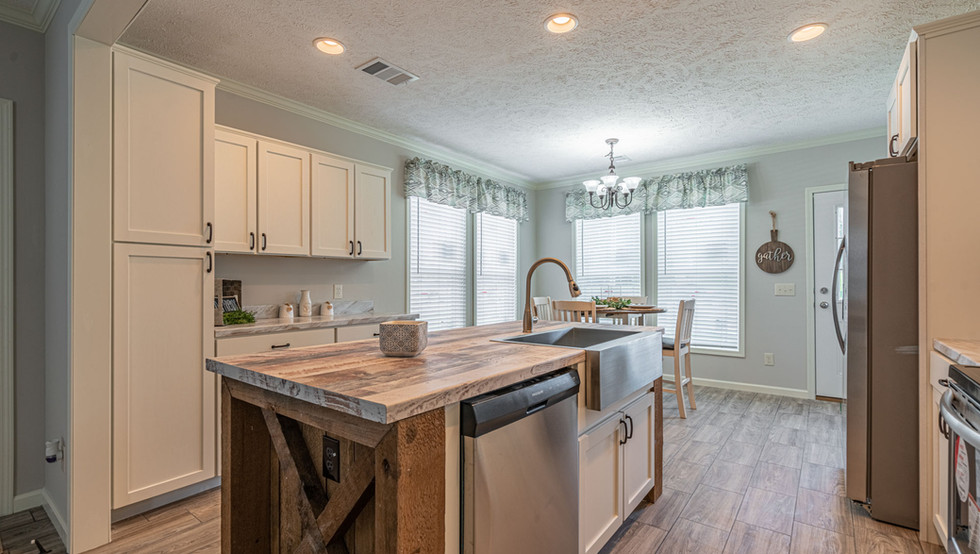

The Haven DVHBSS-4501 by Deer Vally Homebuilders is Deer Valley’s innovative new 2 section home. This 3 bedroom 2 bath 1230 square foot home features the same legendary Heavy Built construction features as the larger Deer Valley homes have, but in a smaller package. This Brand New floor plan was designed to meet the needs of smaller home buyers who want the Energy Efficiency and Heavy Built Construction of a Deer Valley Home. Pictures and 3D Tour come from serial #12210132

Construction

Additional Specs: 2x8 Double Perimeter and Marriage Wall Rails / 12" I-Beams with 8' OC Outriggers / Continuous Ridge Beam - Entire Length of Home / Fully Vented 10" Residential Eaves / Fiber Cement Fascia Plank
Exterior Wall On Center: 16” OC
Exterior Wall Studs: 2x6 Exterior Wall
Floor Decking: 23/32” OSB Tongue and Groove Floors
Floor Joists: 2x8 Floor Joist 16” OC HUD / “On Frame Mod” 2x8 Floor Joist 16” On Center with Modular Rafters / “Off Frame Mod” 2x10 Floor Joist 16” On Center with “X” Tension Bracing & Modular Rafters
Interior Wall Studs: 2x4 Marriage and Interior Wall Construction
Side Wall Height: 8’ Residential Smooth Painted Ceilings
Roof Decking: Tech Shield Roof Decking
Insulation Specs: 22-19-40 Energy Star Ready Insulation HUD / 19-19-30 Insulation “On” Frame Mod / 30-19-30 Insulation “Off” Frame
