Signature Series / Cozy Cabin 1 DVHBSS-MONL-1644
{message}
Signature Series / Cozy Cabin 1 DVHBSS-MONL-1644
Built By:
Deer Valley Homebuilders
1
Bedroom
1
Bath
596
sqft
Single-Section
Introducing the Cozy Cabin 1 DVHBSS-MONL-1644, a charming 569 sq. ft. home designed for comfort and efficiency. Measuring 15×39, this compact yet inviting home offers all the essentials in a beautifully crafted space. Perfect for those who appreciate the simplicity and warmth of a cabin-style retreat. Pictures and 3D Tour come from serial #12411661
Construction
Additional Specs: 2x8 Double Perimeter and Marriage Wall Rails / 12" I-Beams with 8' OC Outriggers / Continuous Ridge Beam - Entire Length of Home / Fully Vented 10" Residential Eaves / Fiber Cement Fascia Plank
Exterior Wall On Center: 16” OC
Exterior Wall Studs: 2x6 Exterior Wall
Floor Decking: 23/32” OSB Tongue and Groove Floors
Floor Joists: 2x8 Floor Joist 16” OC HUD / “On Frame Mod” 2x8 Floor Joist 16” On Center with Modular Rafters / “Off Frame Mod” 2x10 Floor Joist 16” On Center with “X” Tension Bracing & Modular Rafters
Interior Wall Studs: 2x4 Marriage and Interior Wall Construction
Side Wall Height: 8’ Residential Smooth Painted Ceilings
Roof Decking: Tech Shield Roof Decking
Insulation Specs: 22-19-40 Energy Star Ready Insulation HUD / 19-19-30 Insulation “On” Frame Mod / 30-19-30 Insulation “Off” Frame
Request a Price Quote

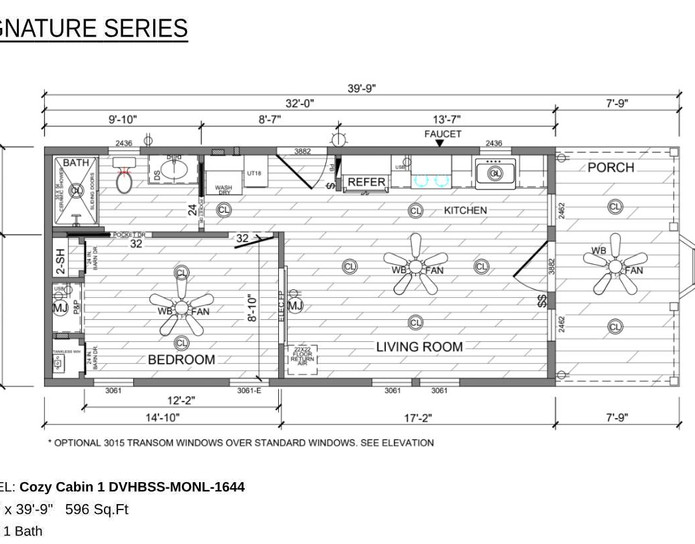

Floorplan
